Views：220To ensure the high-efficiency performance and operational safety of the FENGWANG fully automatic car wash series, the installation site must meet specific spatial requirements. Below are the standard dimensions and technical specifications:
While the machine itself is precision-engineered to be compact, the "Operating Zone" requires a minimum clear space to allow the 360° rotating spray arm and drying system to move without obstruction.

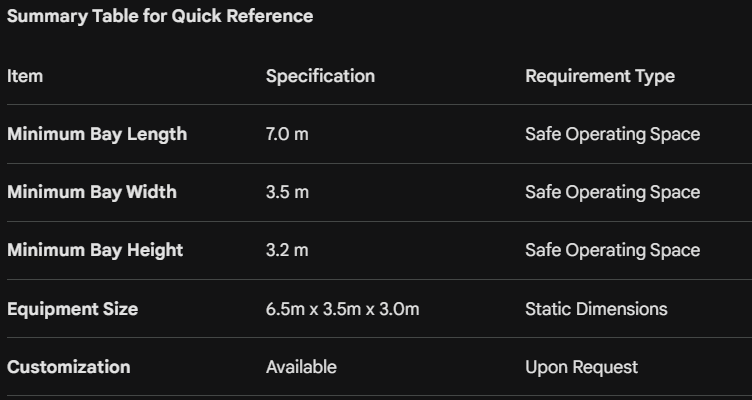

Net Length: 7.0 Meters (Recommended)
Note: While the machine's standard walking track is approximately 6.5 meters, a 7.0m bay provides the necessary safety buffer for the spray arm's rotation at the front and rear of the vehicle.
Net Width: 3.5 Meters
This width ensures optimal distance for the P+F ultrasonic sensors to detect vehicle contours and provides a safe walkway for maintenance.
Net Height: 3.2 Meters
This clearance ensures the top high-pressure spray system and the high-efficiency blowers operate safely without interference from ceiling beams or lighting.
Standard Equipment Footprint: Our standard fully automatic machine occupies a space of approximately 6.5m (L) x 3.5m (W) x 3.0m (H).
Flexible Customization: We understand that every site is unique. If your existing bay does not meet these standard dimensions, we offer full customization services. Our R&D team can adjust the track length and frame height to fit your specific architectural constraints without compromising cleaning quality.
Floor Levelness: The installation ground must be a reinforced concrete slab with a levelness tolerance within ±5mm to ensure the smooth movement of the rail system.
Utility Connections:
Power: 380V / 50Hz (Standard)
Water: Minimum inlet pipe diameter of 1 inch.
Air: Required for pneumatic components (e.g., AirTAC valves).
